Two - axis drive shaft balancing machine

  • product name: Two - axis drive shaft balancing machine
  • Product categories: Drive shaft balancing machine
  • company name: Jinan bodihao machinery equipment co. LTD
  • Add the time: 20/01/12
Product details
Make an inquiry


Product details

1. Introduction of biaxial coupling drive shaft balancing machine

Biaxial coupling transmission shaft balancing machine is a special balancing machine, is specially used for the automotive transmission shaft balance verification of the ideal equipment, only need to replace the fixture to install the workpiece can do dynamic balance of various transmission shaft correction. Equipment can be single shaft correction, can also be two transmission shaft correction together; The swing frame adopts soft support structure, which is suitable for measuring the unbalance of the transmission shaft at high speed, and the measuring effect of the equipment is better.

2. Measurement system

Industrial control computer, 19 "LCD display (can be customized with touch screen), Windows operating platform

with the company's independent development of the transmission shaft balance special software, the software can choose a single section, 2, 3 sections of the transmission shaft correction way; The operation all USES the Chinese menu structure, the operation step text prompt

measurement system performance is strong: arbitrary workpiece calibration, vibration signal display, multiple correction surface unbalance display at the same time

software with allowable unbalance calculator, the operator only needs to input the allowable vibration of the workpiece precision level, mass, working speed, and radius click to calculate the number of grams to allow the remaining unbalance of the workpiece

software completely independent development, according to customer requirements to modify or add software functions (such as scanning the two-dimensional code to add the workpiece identity name to the measurement results to save for future quality investigation)

3. Mechanical parts and controls

soft support swing driving and casting bed, equipment stability is better, can be higher speed measurement shaft unbalance

balance machine before and after the spindle structure, in the middle of the bridge for the swing drive. The front and rear spindle flange has symmetrical long groove, the general stop can be matched with different sizes of positioning ring, the applicability of the equipment is stronger; When the two shafts are jointly aligned, the middle crane of the two transmission shafts is installed on the swing drive of the bridge

swing frame can move along the bed and can be parked in any part of the bed above, so the device can balance between arbitrary length of the workpiece.

installation of synchronous rotation scale identification, easy to find the uneven measurement Angle.

photoelectric sensor measuring speed for high-speed measurement, magnetoelectric sensor measuring vibration for soft support structure

the use of variable frequency speed control system, according to the need to adjust the equipment motor start time is convenient to use

Note: please contact us for more information about the equipment

Manufacturer standard configuration parameters

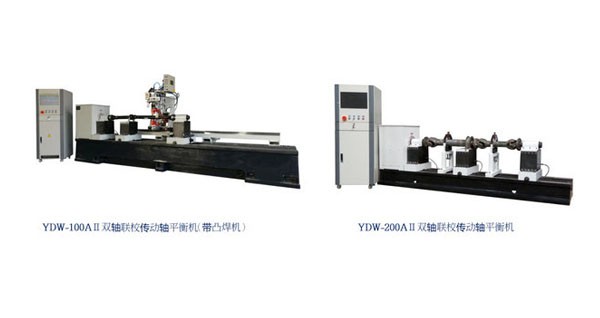

Equipment model YDW - 100 - a YDW - 200 - a

The maximum weight of the shaft is kg 50, 100

Transmission shaft correction mode single section double side or two section three side simultaneous correction single section double side or two section three side simultaneous correction

The maximum length of the workpiece is mm 2000 2500

The length of the bed is mm 3500 4000

Balance speed r/min 500-3000 500-3000

Minimum residual unbalance 8gmm/kg 20gmm/kg

Unbalance reduction rate % 85% 85%

Motor power 1.5kw 2.2kw

the above is the factory standard configuration equipment parameters, we support the product, system according to the customer's demand on the length of the equipment extension

according to the needs of the customer can customize the transmission shaft balance and equipment connected to the fixture

the equipment can be installed according to customer's requirements
