Heavy duty drive shaft balancing machine

  • product name: Heavy duty drive shaft balancing machine
  • Product categories: Drive shaft balancing machine
  • company name: Jinan bodihao machinery equipment co. LTD
  • Add the time: 20/01/12
Product details
Make an inquiry

Product details

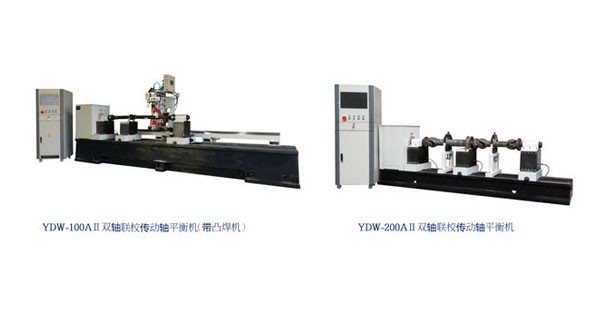

1. Introduction of heavy drive shaft balancing machine

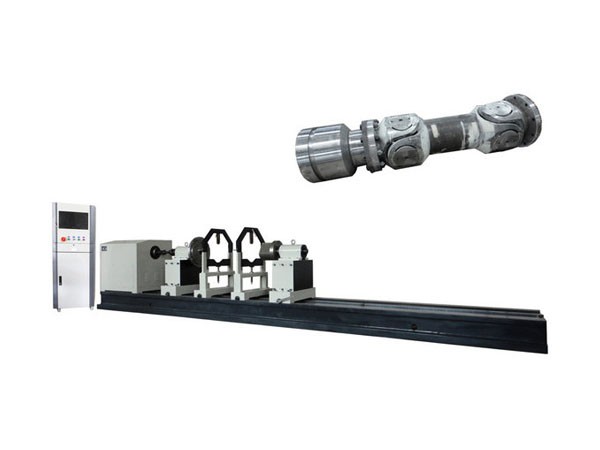

Heavy transmission shaft balancing machine is a special balancing machine, is specially used to balance the ship, steel rolling equipment and other heavy transmission shaft equipment, by replacing the fixture of the installation of the workpiece to adapt to a variety of connections of the transmission shaft balance. Swing frame adopts hard support or soft support structure. Provide customized service for heavy-duty drive shaft balancer within 3t.

2. Measurement system

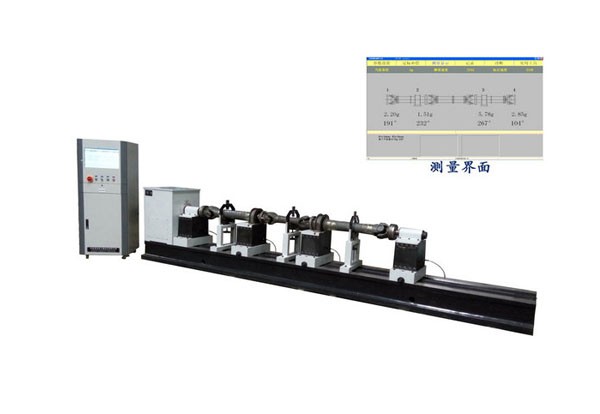

Industrial control computer, 19 "LCD display (can be customized with touch screen), Windows operating platform

with the company's independent development of general balance measurement system. General software functions cover all the functions of the domestic mainstream balance machine software, the operation of all the use of Chinese menu structure, operating steps text prompt

measuring system performance is strong: arbitrary workpiece calibration, measuring speed range wide 80 RPM starting, measuring speed block, unbalance amplitude and phase stability, high deweighting rate and separation ratio, high sensitivity

software with allowable unbalance calculator, the operator only needs to input the allowable vibration of the workpiece precision level, mass, working speed, and radius click to calculate the number of grams to allow the remaining unbalance of the workpiece

software completely independent development, according to customer requirements to modify or add software functions (such as scanning the two-dimensional code to add the workpiece identity name to the measurement results to save for future quality investigation)

3. Mechanical parts and controls

hard support or soft support swing drive and casting bed, equipment stability is better, measuring speed range wide

balancing machine front and rear spindle structure, to provide customized connection fixture service

swing frame can move along the bed and can be parked in any part of the bed above, so the device can balance between arbitrary length of the workpiece.

installation of synchronous rotation scale identification, easy to find the uneven measurement Angle.

the use of variable frequency speed control system, according to the need to adjust the equipment motor start time is convenient to use

Note: please contact us for more information about the equipment

Manufacturer standard configuration parameters

Equipment model ydw-2000a

The maximum weight of the shaft is kg 2000

Transmission shaft correction mode single section double side correction

Swing drive structure hard support

The maximum length of the workpiece is mm 3500

The length of the bed is mm 5300

Equilibrium speed r/min 800-1000

Minimum residual unbalance 20gmm/kg

Unbalance reduction rate % 85%

Motor power 11Kw

the above is the factory standard configuration equipment parameters, we support the product, system according to the customer's demand on the length of the equipment extension

according to the needs of the customer can customize the transmission shaft balance and equipment connected to the fixture

manufacturers can be customized according to the customer's demand drive shaft weight is within 3t drive shaft balancing machine
